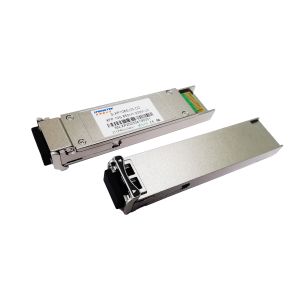

XFP MMF 10G Compatible Optical Module SR 10Gbps 850nm LC 300m Transceiver

S-XP1085L03-CD 221109.pdf

Ordering information

Part Number Product Description
S-XP1085L03-CD XFP, 10Gbps, 850nm, MM,300m, 0ºC~+70ºC, With DDM

Description

Springtek XFP module is compliant with the 10G Small Form-Factor Pluggable (XFP) Multi-Source Agreement (MSA), supporting data-rate of 9.953~11.1Gbps, and transmission distance up to 300m with OM3 MMF.

The transceiver module comprises a transmitter with 850nm VCSEL laser and a receiver with a PIN photodiode. Transmitter and receiver are separate within a wide temperature range and offers optimum heat dissipation and excellent electromagnetic shielding thus enabling high port densities for 10 GbE systems.

Features

  • Supports 9.953Gb/s to 11.1Gb/s bit rates
  • Hot-pluggable XFP footprint, Built-in digital diagnos
  • Maximum link length of 300m with MMF-OM3
  • 850nm VCSEL laser and PIN photodiode
  • XFP MSA package with duplex LC connector
  • No reference clock required
  • Single +3.3V power supply
  • Power dissipation <1.5W
  • Compatible with RoHS
  • Temperature range:0 to +70°C

Applications

  • 10GBASE-SR/SW 10G Ethernet
  • 1200-MX-SN-I 10Gigabit Fiber Channel
  • 10GE over G.709 at 11.09Gbps
  • OC192 over FEC at 10.709Gbps
  • Other optical links, up to 11.3Gbps

Absolute Maximum Ratings

Parameter Symbol Min Typ Max Unit
Power Supply Voltage Vcc -0.5 4.5 V
Storage Temperature Range Ts -40 +85 °C
Relative Humidity - Operating RHO 5 85 %

Any stress beyond the maximum ratings can result in permanent damage. The device specifications are guaranteed only under the recommended operating conditions.

Recommended Operating Conditions

Parameter Symbol Min Typ Max Unit
Case Operating Temperature Range Tc 0 +70 °C
Power Supply Voltage Vcc 3.135 3.30 3.465 V
Supply Current Icc 500 mA
Data Rate BR 9.953 11.1 Gbps

Optical and Electrical Characteristics

Transmitter Electrical Characteristics
Parameter Symbol Min Typical Max Unit Notes
Centre Wavelength λc 840 850 860 nm
Spectral Width(RMS) Δλ 0.45 nm
Side-Mode Suppression Ratio SMSR - - - dB
Average Output Power Pout -6.5 -0.5 dBm 1
Extinction Ratio ER 3.0 dB
Data Input Swing Differential VIN 180 950 mV 2
Input Differential Impedance ZIN 90 100 110 Ω
TX Disable Disable 2.0 Vcc V
Enable 0 0.8 V
Receiver Electrical Characteristics
Parameter Symbol Min Typ Max Unit Notes
Centre Wavelength λc 840 860 nm
Receiver Sensitivity -10.5 dBm 3
Receiver Overload 0.5 dBm 3
LOS De-Assert LOSD -12 dBm
LOS Assert LOSA -26 dBm
LOS Hysteresis 0.5 4 dB
Data Output Swing Differential Vout 400 600 800 mV 2
LOS High 2.0 Vcc V
Low 0.8 V
Notes

1. The optical power is launched into MMF.

2. Internally AC-coupled.

3. Measured with a PRBS 231-1 test pattern @9953Mbps, BER ≤1×10-12.
